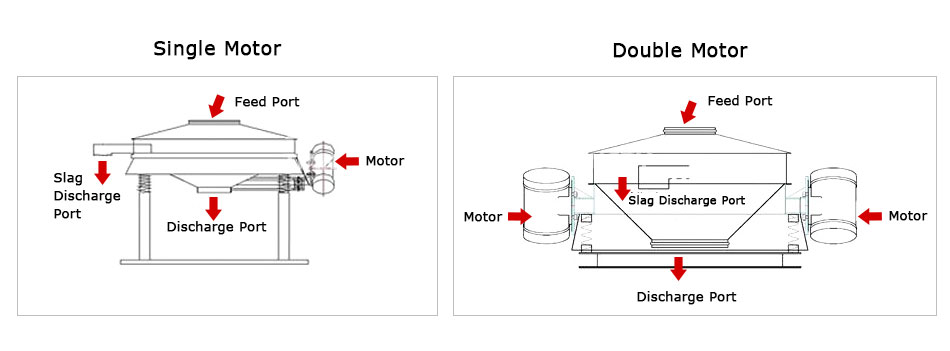

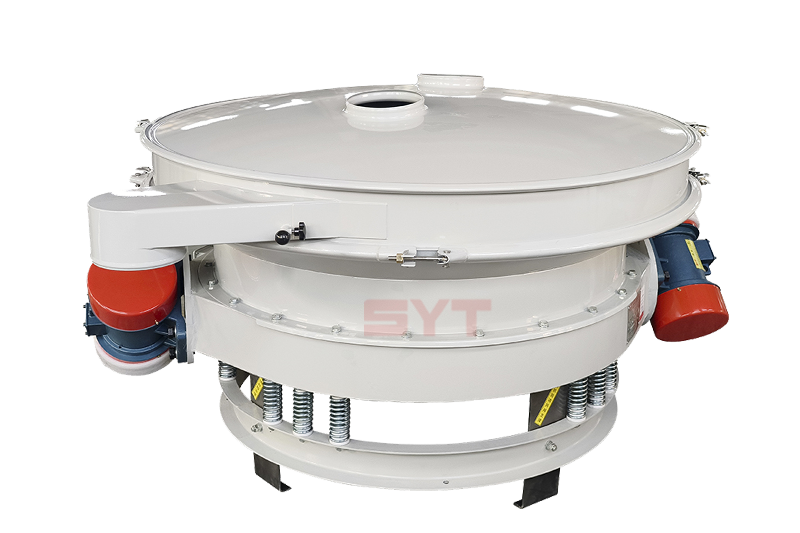

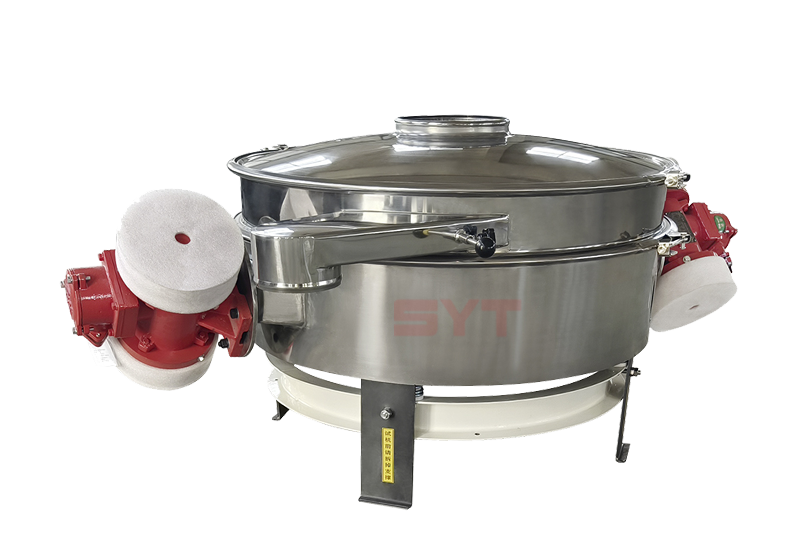

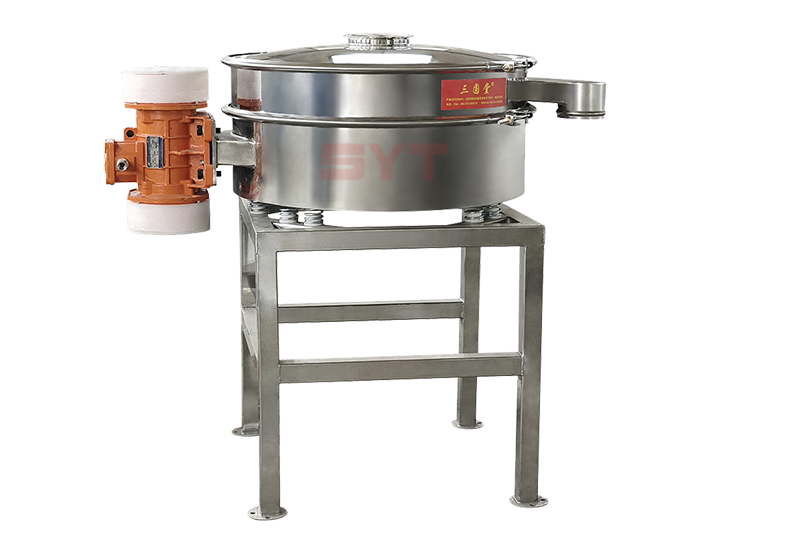

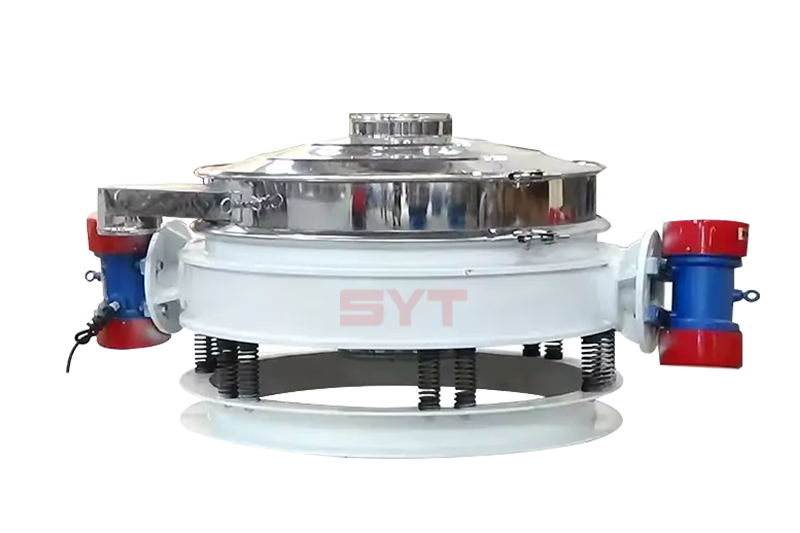

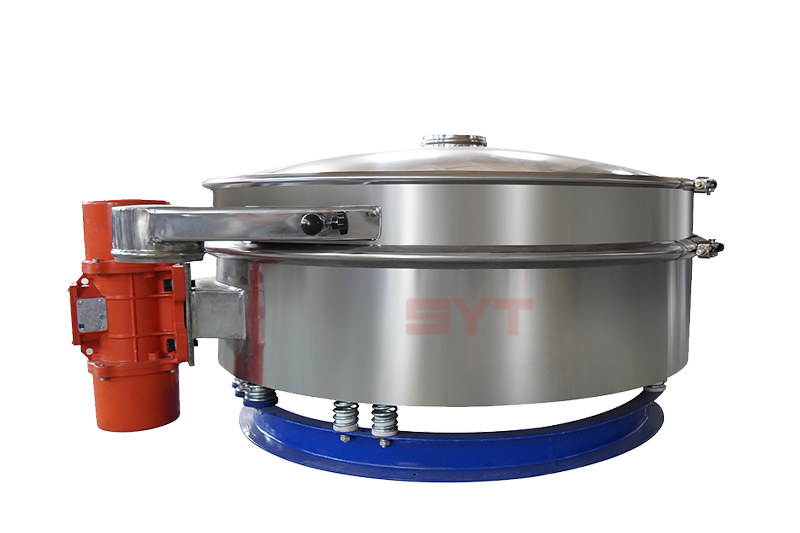

The Direct Discharge Industrial Sifter is a compact yet high-capacity vibrating screening equipment, ideal for a wide range of industries including food, metal, non-metal, chemical, and mining. This sifter excels in the rough screening of granular powders and can seamlessly integrate with production lines. It offers flexibility with the option of using either double or single vibration motors, depending on processing requirements. The adjustable material trajectory enhances the equipment's adaptability, while the vertical discharge design increases processing capacity and discharge speed. The discharge port, located at the bottom of the screen, facilitates efficient material flow.
Compact and Durable Design: Attractive and robust construction with a small footprint, easy mobility.
High Efficiency: Low energy consumption with high processing capacity.
Large Processing Capacity: Efficient material removal, suitable for high-volume applications.
Ease of Maintenance: Easy to disassemble and assemble, strict sealing to prevent liquid leakage and dust flying, easy cleaning with no sanitary dead corners, compliant with food-grade GMF specifications.
Automated Operation: Capable of 24-hour continuous production with an ultra-low noise design.

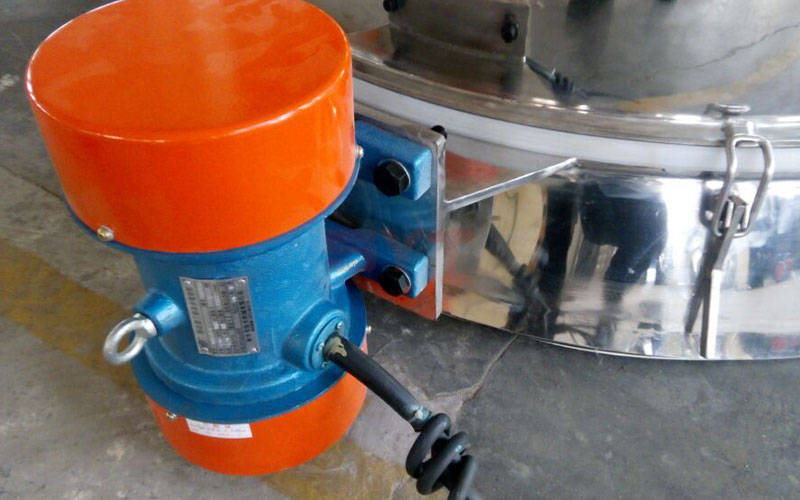

The Direct Discharge Industrial Sifter operates using a vibration motor as the excitation source. This motor employs two sets of eccentric blocks (unbalanced eccentric blocks) at the upper and lower ends of its shaft to convert rotational motion into horizontal, vertical, inclined, and centrifugal forces. These forces are transmitted to the screen surface, achieving the desired screening effect. By adjusting the phase angle and weight of the upper and lower eccentric blocks, the size of the exciting force and the material's movement trajectory can be modified.

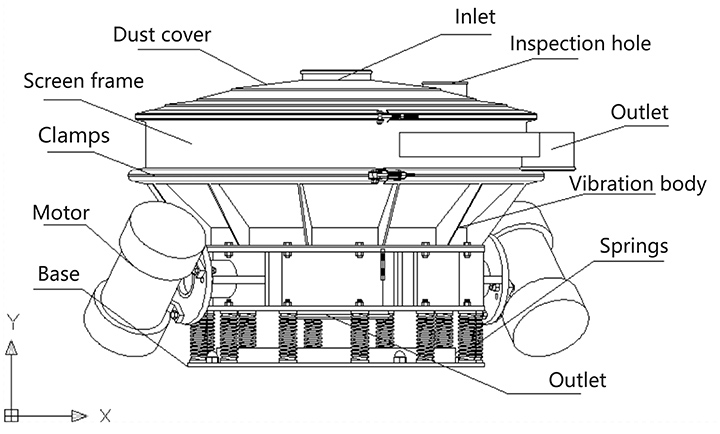

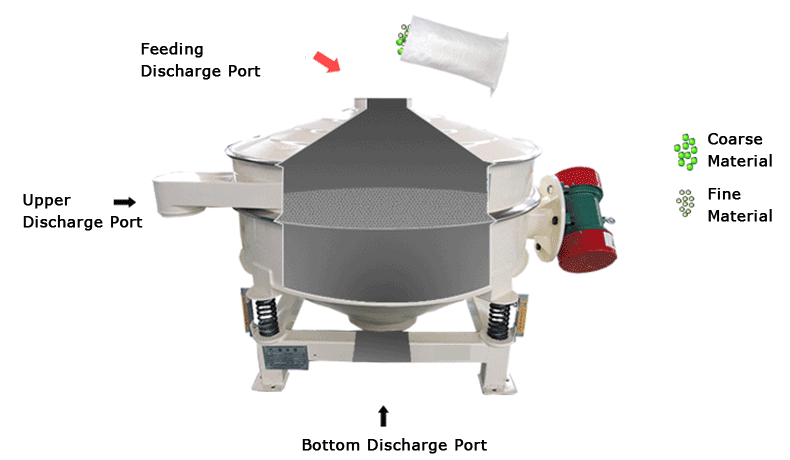

The direct discharge industrial sifter is a common screening equipment used for screening and grading granular materials. The inline screen is usually composed of multiple components, including a screen box, a screen, a vibrator, etc. The following is a typical structure of the inline screen:
1. Screen box: The screen box is the main component of the inline screen, usually a rectangular structure with a screen inside.

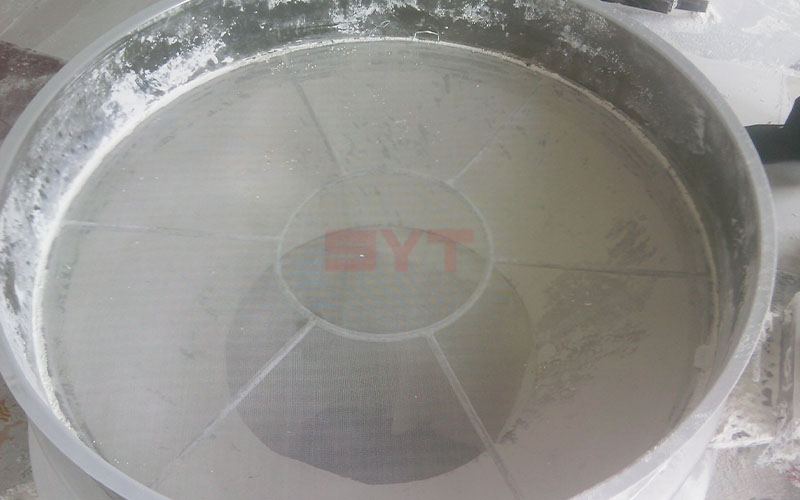

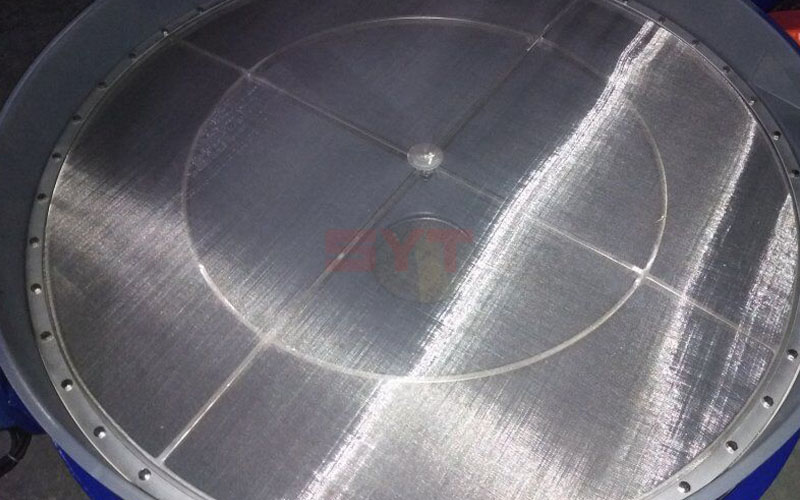

2. Screen: The screen is a key component of the inline screen and is used to screen the material. The specifications and apertures of the screen depend on the particle size requirements of the material, and different screens can achieve different screening effects.
3. Vibrator: The vibrator vibrates the material on the screen through the vibrating screen box, helping the material to pass through the screen quickly during the screening process and improve the screening efficiency.
4. Feed port: Located at one end of the screen box, it is used to introduce the material to be screened into the screen box.
5. Discharge port: Located at the other end of the screen box, it is used to grade and output the screened material.
6. Support structure: used to support the screen box and vibrator to ensure the stability of the entire inline screen.
7. Vibration adjustment device: used to adjust the amplitude and frequency of the vibrator to meet the screening requirements of different materials.
| Model | Power(kw) | Effective diameter(mm） | Material | Packing size(mm) |
| SYM-600 | 0.18 | 550mm | SUS304/Q235 carbon steel | 740*600*500 |
| SYM-800 | 0.18 | 750mm | SUS304/Q235 carbon steel | 1010*800*600 |
| SYM-1000 | 0.25 | 970mm | SUS304/Q235 carbon steel | 1200*970*640 |
| SYM-1200 | 0.55 | 1170mm | SUS304/Q235 carbon steel | 1430*1170*790 |
| SYM-1500 | 0.55 | 1470mm | SUS304/Q235 carbon steel | 1780*1470*760 |
The vertical vibrating screen is suitable for coarse screening, fine screening and processing of granular powder in various industries, and is easy to combine with the production line.
1. Food industry: flour, starch, food additives, coffee powder, baobab powder, condiments
2. Chemical industry: soda ash, polyethylene, resin powder (PVC, epoxy), washing powder, additives, paint, dyes, pigments, rubber, coatings, perlite, silica powder, activated carbon, polyethylene powder, fire extinguishing agent, pigment, etc.
3. Non-mining industry: stone, sandstone, coal, graphite, mica, gypsum
Thirty years of dedication have allowed us to accumulate extensive production and service experience, enabling us to solve various challenges in powder processing for our numerous clients.
Innovation is the lifeblood of our company's development. To date, we have obtained over 40 domestic and international patents, with many of our products holding multiple patents.
We specialize in undertaking the design and production of fine powder processing production lines, offering a one-stop service from crushing, screening, conveying, feeding, mixing to packaging.
Upon receipt of the products, detailed English user manuals are provided. For relatively complex installations or product usage, video installation guidance is available. For large-scale technical projects, we can dispatch professional technical personnel for on-site installation guidance.
