Fracturing sand is a kind of high-purity quartz sand, which is finely processed and has the characteristics of round particles, strong compression resistance, high wear resistance and good fluidity. It has a wide range of main uses, especially in the fields of oil extraction, geothermal extraction and geotechnical engineering.
The process of the fracturing sand screening production line usually includes the following steps:
Raw material mining and crushing: First, the fracturing sand raw material is mined, and then it is crushed into particles of appropriate size by a crusher.
Conveying and lifting: The crushed fracturing sand is transported to the bucket elevator by a belt conveyor, and then lifted to the silo by the bucket elevator for storage.
Screening and grading: The fracturing sand in the silo is screened by a square swing screen, and the fracturing sand is divided into different grades according to the particle size.
System Equipment Composition
Fracturing sand screening production line is the most mature and stable fracturing sand complete screening system of Sanyuantang. The system is composed of crusher, belt conveyor, bucket elevator, silo, square swing screen, etc.

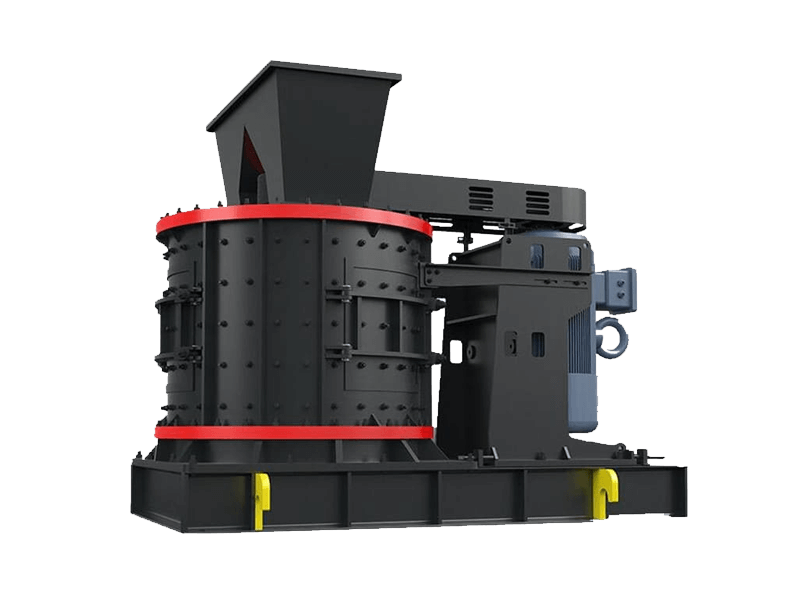

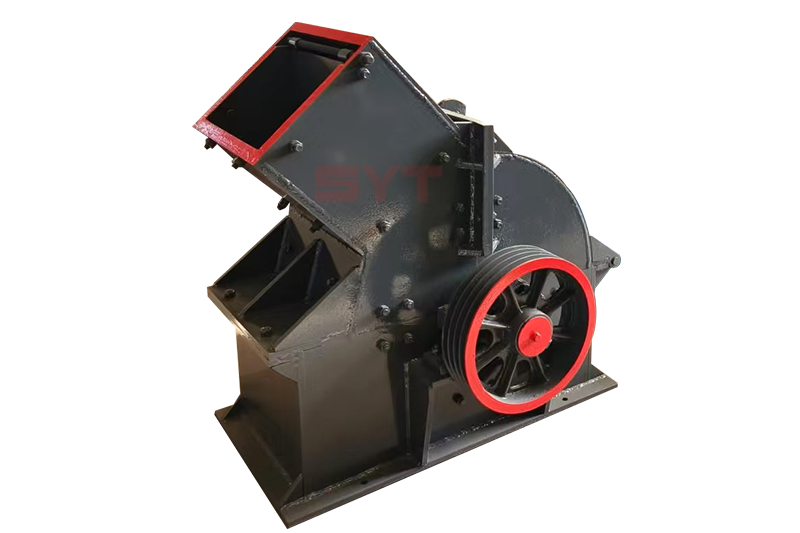

Crusher
Function: Crushing large pieces of fracturing sand raw materials into small particles suitable for subsequent processing.
Features: high crushing efficiency, large crushing ratio, and can handle materials of various hardness.

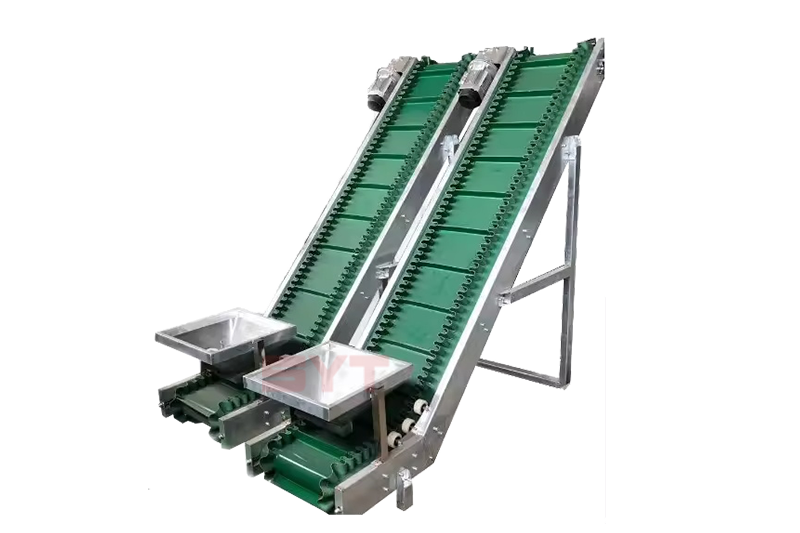

Belt Conveyor
Function: Responsible for conveying the crushed fracturing sand from the crusher to other equipment, such as bucket elevator or silo.
Features: large conveying capacity, long conveying distance, stable and reliable operation.

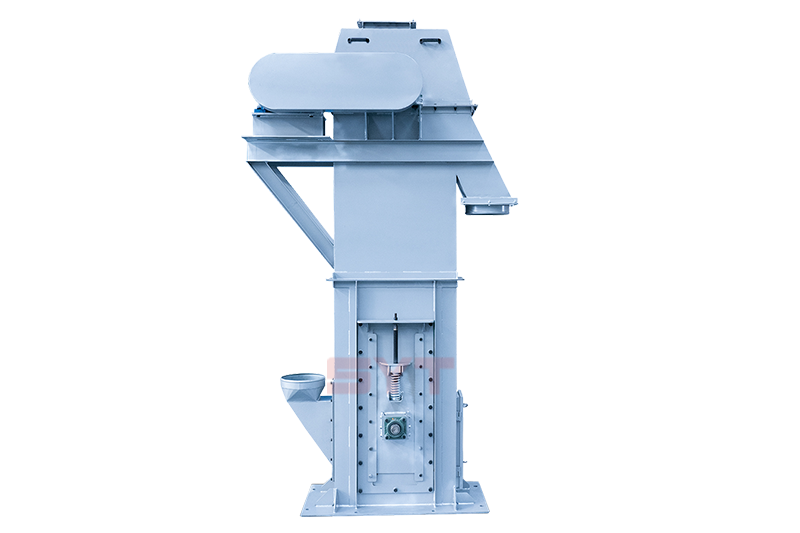

Bucket Elevator
Function: Lift the fracturing sand from a low place to a high place so that it can enter the silo or further processing equipment.
Features: large lifting height, small footprint, and high lifting efficiency.
Silo
Function: Store the crushed fracturing sand to provide a stable material supply for the screening process.
Features: large capacity, reasonable design, and convenient storage and retrieval of materials.

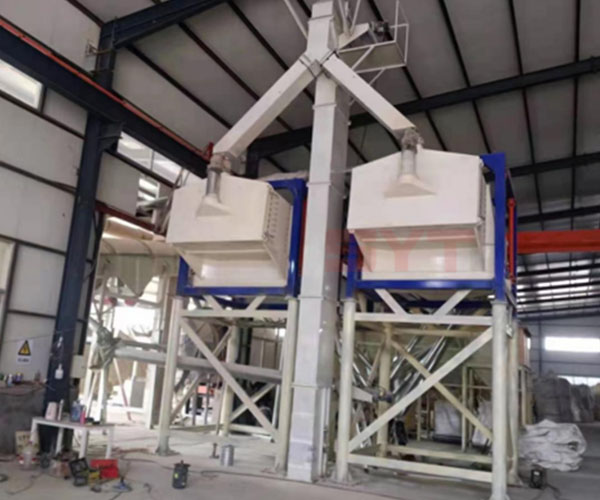

Square Gyratory Screen
Function: Screen the fracturing sand and separate the fracturing sand of different particle sizes to meet different usage requirements.
Features: high screening efficiency, high screening accuracy, and various screen specifications that can be adjusted according to needs.
Large output
The production line adopts high-efficiency screening and conveying equipment, and the output can reach 10-30 tons/hour, which can achieve large-scale output and meet the needs of large-scale production.
High production efficiency
The equipment cooperates closely with each other, with high production efficiency, and realizes rapid screening and processing of sand materials.
High screening accuracy
The square swing screen adopts advanced screening technology with high screening accuracy, which can meet the requirements of different users for fracturing sand particle size. And the fracturing sand after screening is full and round, meeting the high quality requirements.
Strong pertinence and easy maintenance
The production line for petroleum fracturing sand is easy to maintain and maintain, reducing the cost of use, and the equipment can be configured according to the customer's production line.
High degree of automation
The entire production line adopts an automated control system to realize the automatic start and stop, fault alarm and remote monitoring functions of the equipment.
Stable operation
The screening and conveying equipment has a solid structure, stable operation, low failure rate, and can operate stably for a long time, reducing downtime.
Dyeing
At the same time, each equipment has low energy consumption, which meets the requirements of environmental protection and energy saving.
