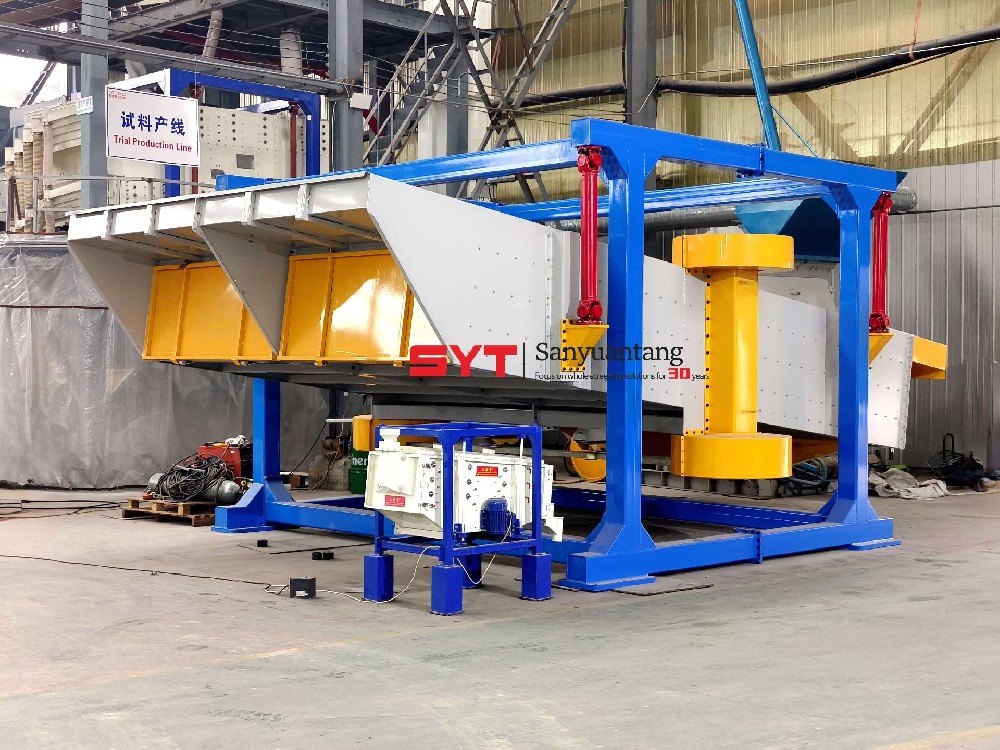

The wood chip screener is also called a four-vibration source square swinging wood chip screen because the whole machine has four excitation points. It is widely used in processing and screening wood chips, sawdust, biomass energy, alternative fuels, RDF, and other materials. It has the characteristics of large output and high screening efficiency, and is suitable for grading block or granular dry materials. The wood chip screening equipment can be used in conjunction with a chipper to effectively separate fine and overlong materials from wood chips, or separate mineral components from waste wood to facilitate subsequent recycling or heat treatment. Our company has successfully applied for a national invention patent for this product.
Efficient Screening
Through multi-layer screens and continuous vibration, the material has a long travel on the screen, with high screening accuracy and large processing capacity.
Wide Range Of Applications
The aperture size of the screen can be adjusted according to actual needs, and wood chips of different materials, shapes, and sizes can be processed.
Large-Capacity
According to on-site tests, it can screen 18 cubic meters in one minute, which is equivalent to 1080 cubic meters in one hour, which can meet the needs of large-scale production.
Plastic Spraying And Baking Process
The whole machine adopts spray paint treatment technology, with a beautiful appearance, a bright surface, not easy to get dirt, easy to clean and maintain, and has good anti-corrosion, anti-rust and weather resistance.
Warranty Service
The whole machine is guaranteed for two years. If there are any quality problems within two years, the three-guarantee policy will be implemented. We promise to provide users with timely and professional after-sales service to ensure stable operation of the equipment and user experience.

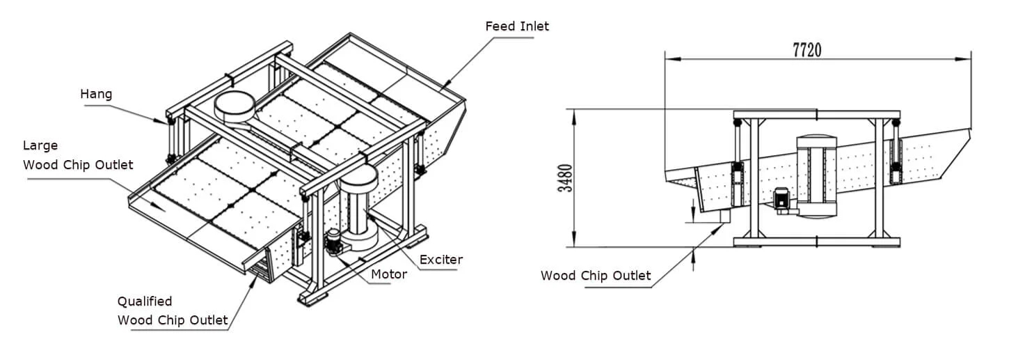

The wood chip screener oscillating screen is mainly powered by a 15KW permanent magnet synchronous motor, which is driven by a V-belt and a synchronous belt to produce a reciprocating elliptical swinging motion, which is transmitted to the screening bucket through the screen box, screen mesh, and other components, so that the wood chips jump and slide on the screen mesh, and finally achieve the classification of wood chips of different sizes.

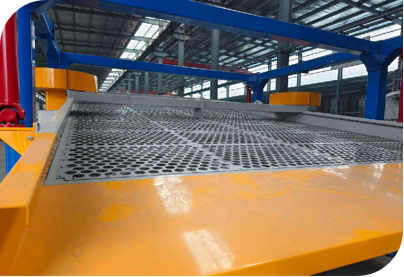

Screen Layer

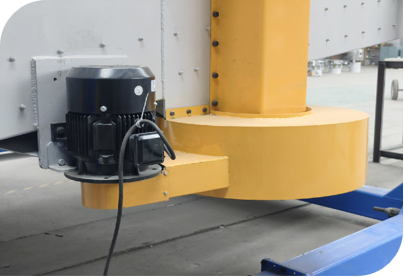

Electric motor and lower vibrator

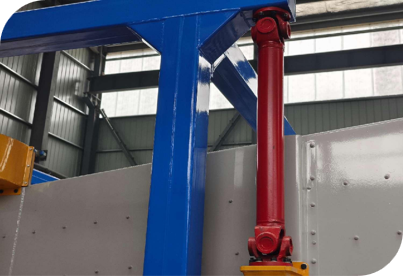

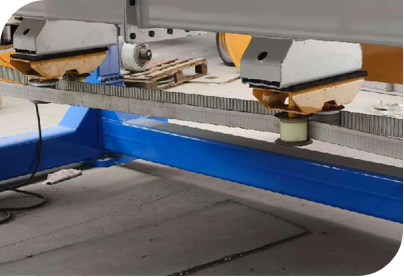

Suspension

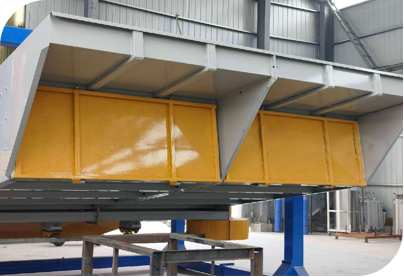

Screen Replacement Channel
Transmission Belt

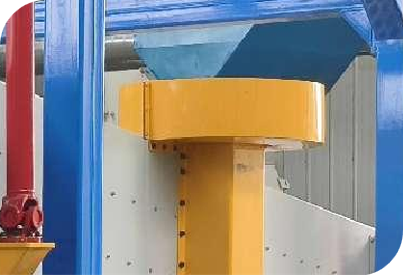

Upper Exciter
Model | Dimensions (l * w * h) (m) | Screening Area (m²) | Sieve Layers | Motor Power (kw) | Production Capacity (m³/h) | Spindle Speed (r/min) | Vibration Amplitude（mm） | Tilt Angle |
FYBS-4060 | 7.6*5.2*3.4 | 4*6 | 1~5 | 15 | 600~1000 | 200一300 | 60-70 | 8-10° adjustable |
The wood chip screener is widely used in wood processing, pulp and paper making, biomass energy and other fields. Such as: wood chips, wood blocks, wood fiber, wood pellets, palm fiber, bamboo chips, coconut fiber, charcoal blocks, wood chips, slab wood, sawdust / shavings, plastics, mulch, compost, biomass, feedstock, c&d debris, refuse derived fuel, hog fuel, urban wood, paper / occ, , etc.
Thirty years of dedication have allowed us to accumulate extensive production and service experience, enabling us to solve various challenges in powder processing for our numerous clients.
Innovation is the lifeblood of our company's development. To date, we have obtained over 40 domestic and international patents, with many of our products holding multiple patents.
We specialize in undertaking the design and production of fine powder processing production lines, offering a one-stop service from crushing, screening, conveying, feeding, mixing to packaging.
Upon receipt of the products, detailed English user manuals are provided. For relatively complex installations or product usage, video installation guidance is available. For large-scale technical projects, we can dispatch professional technical personnel for on-site installation guidance.
