As industries move toward higher precision, cleaner powders, and more stable production, traditional vibrating screens often struggle with accuracy, throughput, and material protection.
For fine, light, irregular, or fragile materials, the Circular Tumbler Screen offers a superior alternative—combining gentle motion with exceptional efficiency, accuracy, and multi-stage classification.
This article provides a complete overview of how the Circular Tumbler Screen works, its key advantages, application scenarios, and how it compares with conventional vibrating screens.

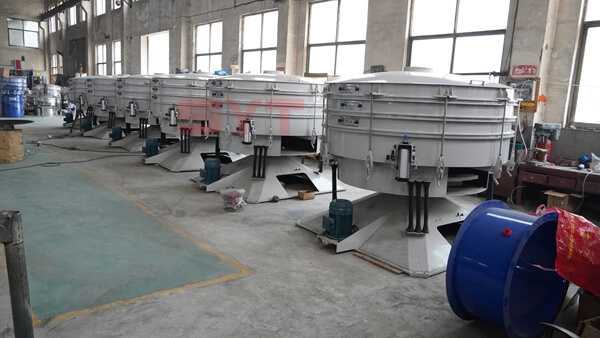

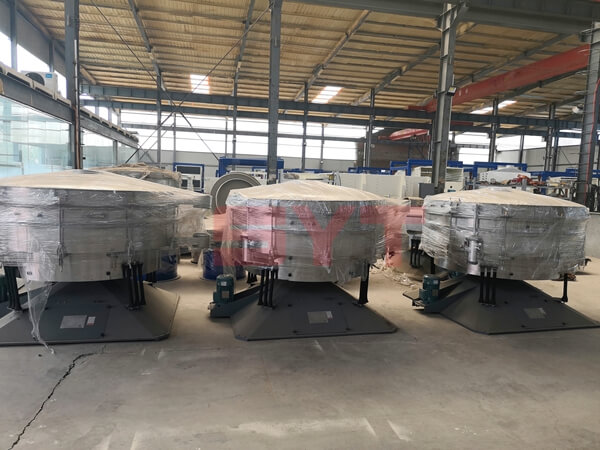

A Circular Tumbler Screen—also known as a circular tumbler sifter, round tumbler screener, or imitation-manual screener—is a high-precision screening machine designed to replicate the motion of manual hand sieving.
By combining circular motion with parabolic throwing, the tumbler screen provides gentle, controlled material movement. This ensures high accuracy and low product damage, making it especially suitable for fine, light, fragile, and challenging materials.
Typical materials:
Fine powders
Granular products
Fragile or irregular particles
Materials requiring high accuracy or gentle handling
Screening accuracy can reach 95% or higher.
Once the machine is powered on, the screen body moves in an approximate circular motion. The screen deck performs a periodic swing, causing materials to move in a manual-like gliding and jumping trajectory.
Screening steps:
Material spreads across the screen and moves directionally along the surface.
Particles smaller than the mesh aperture pass through the screen and discharge from the lower outlet.
Oversized particles flow toward the outlet on the upper layer.
The entire process is smooth and gentle, avoiding strong impact or deformation of the product.
Because the material remains on the mesh surface for more than 85% of the screening cycle, separation accuracy and efficiency are significantly improved.
Extended retention time on the mesh ensures efficient stratification and fine precision. Ideal for powders with strict accuracy requirements.
Available diameters:
600 / 1000 / 1200 / 1600 / 2000 / 2400 / 2600 mm
Suitable for both small-batch production and large-scale continuous lines.
Supports up to 5 decks, enabling simultaneous classification of multiple particle sizes.
Side-to-side swinging instead of vertical vibration:
Less mesh impact
Lower noise
Reduced wear
No damage to fragile materials (tea, herbs, additives, metal powders, etc.)
Compatible with various cleaning systems:
Bouncing balls
Rotating brushes
Ultrasonic deblinding
Air sweeping (optional)
These improve mesh permeability and prevent clogging, ensuring stable, continuous operation.
| Circular Tumbler Screen | Standard Vibrating Screen |
|---|---|
| Elliptical swinging (manual simulation) | High-frequency vibration |
| Gentle on fragile materials | Possible particle breakage |
| Accuracy up to 95%+ | Accuracy 50%–95% (depending on material) |
| Low wear, low noise | Higher impact, mesh wears faster |
| Ideal for fine/fragile/light materials | Suitable for general powders and granules |
| High throughput (5–10×) | Medium throughput |
For industries demanding high accuracy, stable output, and product integrity, the circular tumbler screen offers a clear advantage.
The Circular Tumbler Screen is widely used across multiple industries:
Food Industry: Milk powder, Starch, Coffee powder, Flour, Sugar powder, Seasonings, Grain powders
Chemical Industry: Resin powders, PVC/PE/PP, Titanium dioxide, Calcium carbonate, Additives, Silica powder
Pharmaceutical Industry: Herbal powders, Granules, API-related materials
Metallurgy & Mining: Copper powder, Iron powder, Nickel powder, Metal alloys
Other Industries: Ceramics, Battery materials, Feed additives, Mineral powders
Especially suitable for fine, light, electrostatic, fragile, irregular, and difficult-to-screen materials.
In real production environments, the Circular Tumbler Screen has proven effective in:
High-precision powder classification
Multi-layer particle size grading
Powder purification and impurity removal
Protective screening of fragile materials
Customer feedback consistently highlights:
Higher accuracy; Increased capacity; Less mesh blockage; Lower noise and longer mesh life; Stable and continuous operation.
Choose a Circular Tumbler Screen if your material meets any of the following conditions:
Fine, light, electrostatic, or sticky
Fragile or easily broken
Requires high precision separation
Traditional vibrating screens cause mesh blockage
Need gentle handling without material damage
High-volume, continuous screening is required
The tumbler screen integrates precision, capacity, stability, and gentle processing, making it one of the best solutions for modern powder and granular screening.
